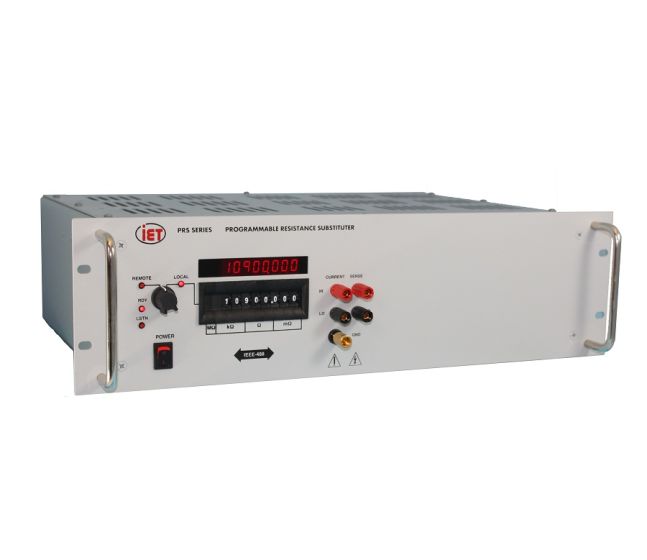

Scatola Decade di resistenza programmabile serie PRS

  • IEEE, RS232 or Ethernet Programmable Decade Resistor
  • Wide range and resolution: 100 mΩ to 100 M&Omega with 1 mΩ resolution
  • Available at accuracies of : 0.01%, 0.02%, 0.05%, 0.1%, 0.5%, and 1%
  • Special RTD and custom configurations
  • Dual / Combo rackmount models ( examples: Resistance & Capacitance or Resistance & Inductance)
  • Programmable "open circuit" and "short circuit" states optional
  • Desktop and 19" Rackmount enclosures
  • Contact us for Custom or Built to Order Models
  • High power versions available
IET has come up with a new decade resistor family that is significantly superior in performance at a somewhat similar price to this PRS-200 Series.
You should strongly consider our NEW PRS-330 Decade Resistor
See PRS Selection Guide for all Programmable Decade Resistors

Reasons to still consider the PRS-200 Series
  • If you can accept a 0.1% or 1% unit. The PRS-200 and PRS-201 have an upfront cost of 30-40% less than the PRS-330. The PRS-202 is similarly priced or more expensive than the PRS-330
  • Maximum Resistance: The PRS-200 series can have a maximum resistance of 100 MΩ vs the PRS-300 series which has a maximum resistance of 20 MΩ
  • High Power: The PRS-202 series can be custom built to your application allowing for higher power or custom requirements Contact for more information
  • IET PRS20x_LabView Driver per versioni IEEE-488.2 e RS-232
  • IET PRPR Driver Ethernet_LabView per versione Ethernet
  • unità di impedenza programmabile efficace controllata manualmente e da un computer
  • Versioni ad alta potenza disponibili
  • Gli stati programmabili "circuito aperto" e "cortocircuito" sono opzionali
  • Contenitori da tavolo e rack 19 "
  • Contattaci per modelli personalizzati o su misura
Prices range from 4.632,00 USD to 13.750,00 USD
Prices range from 4.632,00 USD to 13.750,00 USD
Estimated Delivery is 5 to 13 weeks
